HD-LDL Lightning Monitoring System
I. Basic Overview of Lightning Protection Systems
The HD-LDL Online Lightning Monitoring System is an advanced, high-tech system specifically designed to monitor and analyze lightning activities. Powered by big data and AI models, it provides equipment-free data services. The system can monitor key parameters in real time, including lightning current parameters, the degradation level of Surge Protective Devices (SPDs), operation counts, air switch statuses, three-phase voltages, as well as environmental temperature and humidity. It not only offers early warnings before lightning strikes but also provides post-strike traceability data for precise localization, significantly saving the time cost of accident investigation.
This system is specifically tailored for large-scale projects that are highly susceptible to lightning strikes and difficult to inspect accurately, such as forestry and grasslands, aerospace facilities, oil depots, wind farms, overhead transmission lines, highways, and communication networks. Through intelligent data monitoring and collection, it achieves the functions of empirical data accumulation and risk early warning.
II.Three-Tier Monitoring Structure of the Lightning Protection System
1.Central Management Center: Depending on the operating distance, it communicates with the mobile data collection devices at the system's monitoring substations either through direct retrieval or via a GPRS network to obtain real-time status information of all monitored points.
2.Handheld Mobile Collection Devices: Communicates wirelessly with the wireless data acquisition terminals and transmits the collected results to the Central Management Center.
3.Wireless Acquisition Terminals: Operates independently with automatic data collection and recording capabilities. Its data can be read at any time by inspectors' mobile devices, transmitted via fiber optics, or transferred using the GPRS system.
III.Features of the Lightning Protection System
Cost-Effective:Utilizes low-cost wireless transmission equipment,significantly reducing overall project construction costs.
Ultra-Low Power Consumption&Solar Powered:Operates with extremely low power consumption and is powered by photovoltaic(solar)energy,eliminating the need for additional power supply infrastructure.
Easy Installation&Maintenance:Designed for simple implementation,making both installation and maintenance highly convenient.
Promotes Digitalization&Safety:Plays a positive role in achieving safe,environmentally friendly,networked,and information-driven lightning monitoring,bringing the safety monitoring of high-voltage transmission lines to a practical and mature stage.
IV.Key Technical Parameters
Cumulative Recording Capacity:999 cycles
Time Accuracy:1 second(s)
Lightning Energy Classification:
Super Strong:>50kA
Strong:30kA~50kA
Medium:10kA~30kA
Weak:<10kA
Static Power Consumption:30 mW
Fiber Optic Transmission Distance:10m
Wireless Module User Interfaces:UART/RS232/RS485/USB
Operating Temperature Range:-40℃~+70℃
Maximum Operating Altitude:3,000m
Line-of-Sight Communication Distance:500m
V.Main Functions of the Lightning Protection System

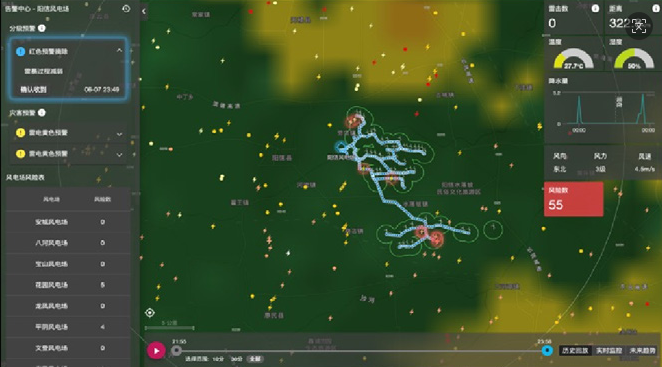

Real-Time Online Monitoring:Continuously monitors lightning strike data online,enabling management personnel to clearly understand the impact of lightning strikes on equipment directly from their computer terminals.
Data Statistics&Analytics:Automatically generates graphical charts and curves for annual lightning records,helping managers promptly adjust protection levels.This not only reduces maintenance costs(both financial and labor)but also prevents significant losses caused by lightning strikes.
Cross-Platform Compatibility:Supports seamless data sharing between computers and mobile devices.
Early Warning Function:Monitors the working status of the grounding grid online and sets safety thresholds to trigger early warnings,effectively preventing losses caused by grounding system failures.
Long-Term Data Retention:The lightning data management platform provides customers with long-term data services.
VI.Monitoring Scope of the Lightning Protection System
Overvoltage Monitoring on Transmission Towers:Monitors lightning-induced overvoltage on power towers.
Dynamic Grounding Resistance Monitoring:Continuously tracks and monitors dynamic changes in grounding resistance.
Direct Strike vs.Backflashover Discrimination:Accurately identifies and distinguishes between direct lightning strikes and backflashovers.
VII.Application Scope of the Lightning Protection System
Wind power generation,transmission lines,forestry lands,mobile communication base stations,national defense information sector,high-speed railways,highways,petrochemical industry,enterprises and public institutions,large-scale industrial sites,and civil buildings.
