Lightning Rod-Early Discharge/Optimised/Decorative Lightning Rod

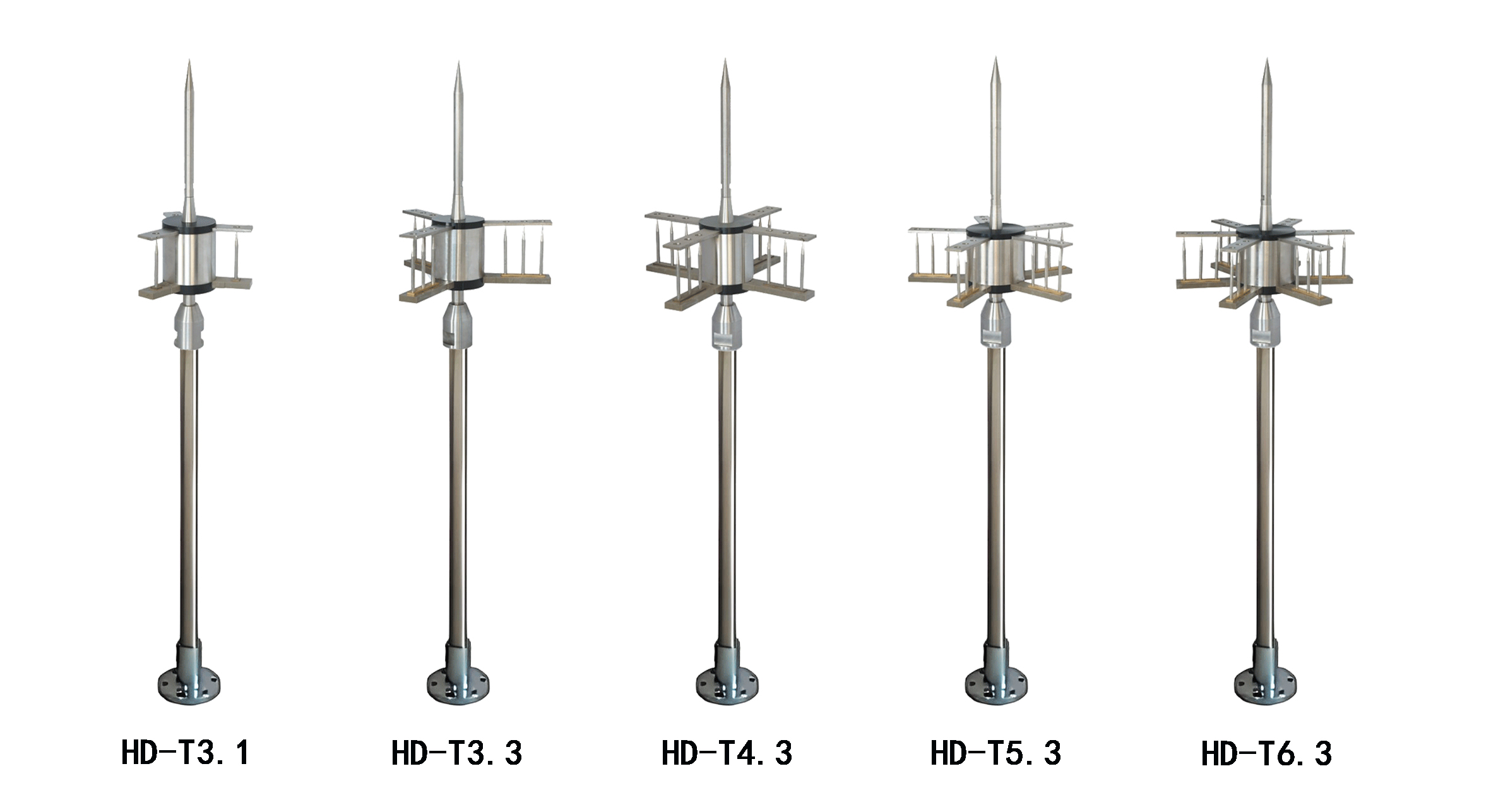

First,early discharge lightning rod
1, Basic Overview
HD series of early discharge lightning rod made of new stainless steel material,completely active discharge system,from the clouds to actively obtain energy to generate start-up current,the formation of upstream pilot.
The advance discharge time is 30μS~60μS,that is,the priority of lightning into the ground.
2, Functional Advantages
(1)Compared with ordinary lightning rods,HD series lightning rods can take the initiative to achieve continuous corona effect through forced discharge,thus actively accelerating to meet the downstream pilot,which can quickly and safely intercept and safely discharge lightning into the ground.
(2)In the same height,the advance discharge lightning rod protection radius than ordinary lightning rod tens of times larger,composed of three systems,double instantaneous discharge device,flash more accurate,more effective in reducing the probability of lightning strikes fall on the radius of protection of non-lightning rod.
(3)advance discharge lightning rod corrosion-resistant,wind-resistant,no need for power supply,no aging,easy and convenient to install,no need for daily maintenance later.
3, Application field
HD series of early discharge lightning rods are widely used in mobile base stations,industrial parks,large buildings,large warehouses,communication base stations,radio and television stations,government buildings,lightning protection projects and other large areas of direct lightning protection.
4, Installation Instructions
Installation of HD series early discharge lightning rods in China should comply with the provisions of the≤Building Lightning Protection Design Code≥(GB50057-2010).
(1)Determine the lightning protection category of the building according to the area and height of the protected building,the location of thunderstorms and the correction factor of the geographic environment,and the nature of the building use.
(2)by the lightning protection category and the area of the building,and then select one or more HD series of early discharge lightning rod.
(3)The lead wire should be connected with the main steel of the building to make a reliable electrical connection,or make two or more lead wires according to the regulations.
(4)The lead wires shall be made with disconnecting card,and the ground attachment shall be insulated and protected.
(5)The grounding body,grounding resistance and lightning protection ground network should be implemented according to the requirements of GB50057-2010.

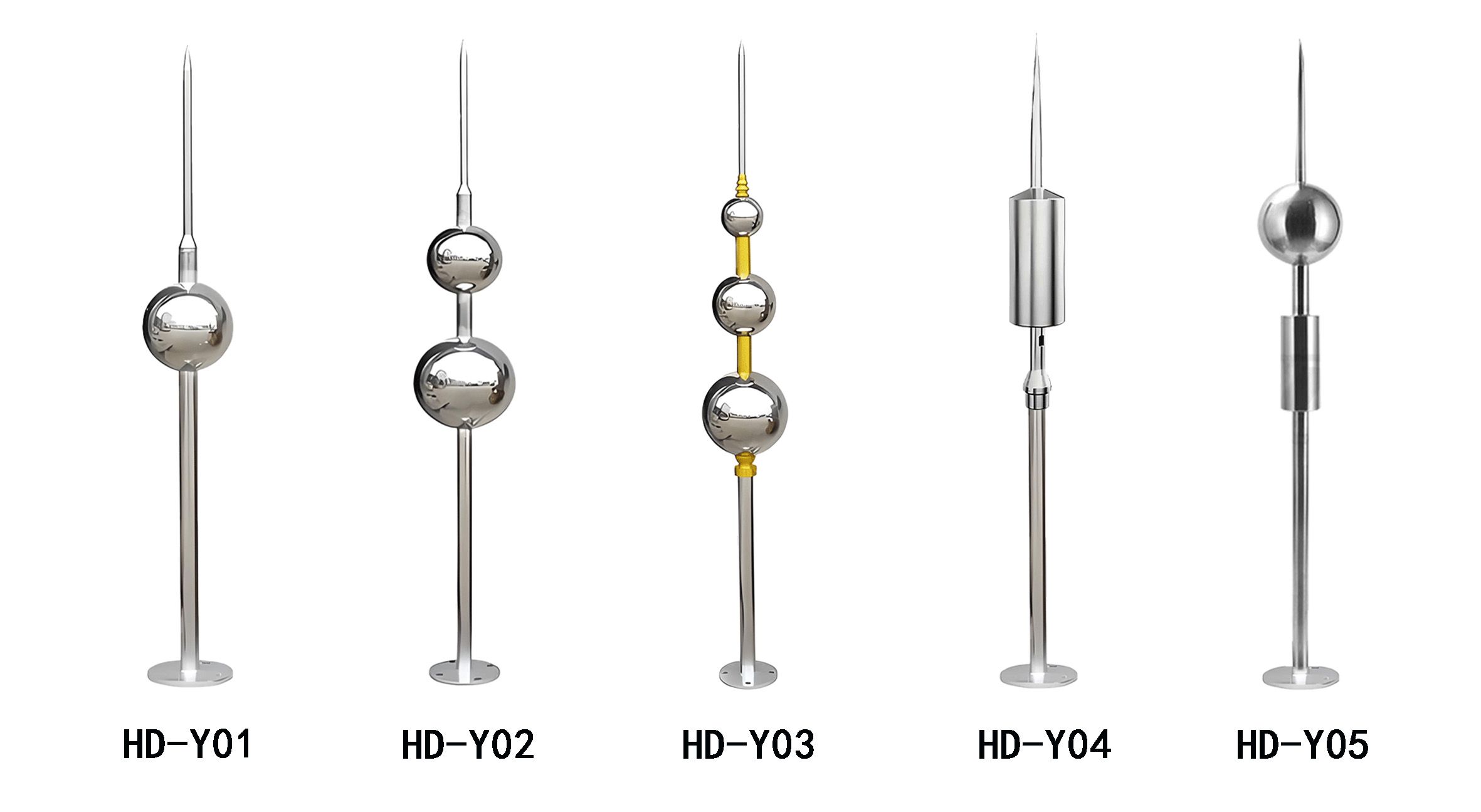

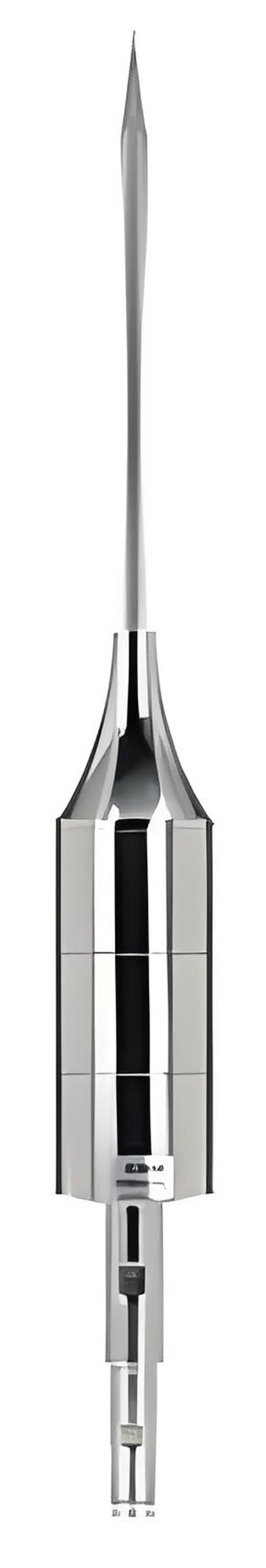

Second,optimised lightning rod
1, Product features
Larger protection radius,longer service life.
Optimised lightning rod is designed to pay more attention to performance and efficiency.It selects stainless steel materials,can be installed in places with harsh environments.Optimised lightning rod protection radius is usually several times larger than ordinary lightning rod,and light weight,low load requirements.
2, Application range
Optimisation of lightning rods installed in medium-sized facilities more important top of the building,applicable to all types of buildings direct lightning protection.

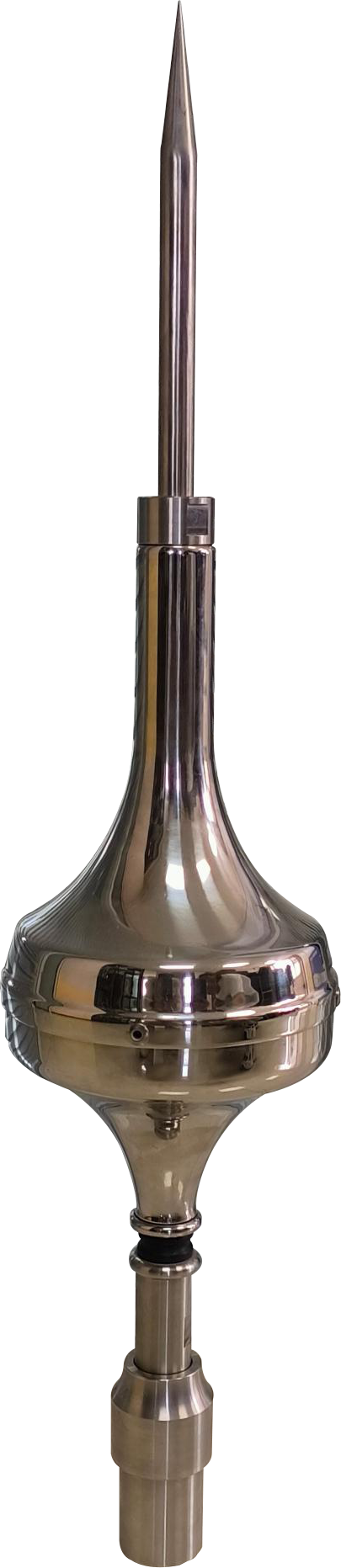

Third, decorative lightning rod
1,Product introduction
Decorative lightning rod in the design of more attention to aesthetics and practicality.Its appearance is usually more delicate,can be used as a kind of dome tower decoration,not only has the function of lightning,but also to enhance the visual effect of the building.
2,The scope of application
Decorative lightning rod is suitable for high-grade civil buildings,commercial buildings,villas,hotels and other places.
(Want to know more about lightning protection and grounding products-lightning rod lightning arrester related content,welcome to call the hotline!)
