DSAN Double Sparse Bionic Coating
First,Basic Overview of Lightning Protection and Waterproof Coating

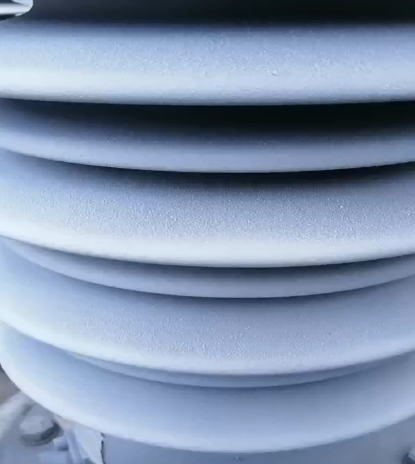

DSAN coating is based on the principle of bionic superhydrophobic self-cleaning of"lotus leaf effect",obtained through the reaction modification of inorganic nanoparticles by low surface energy substances and the construction of micro-nano roughness structure,which has the functions of superhydrophobicity,ultra-self-cleaning,water-repellent migration,delayed icing,easy to get rid of ice,and so on,and it can effectively prevent the formation of water film on the surface of the equipment,and still maintain the superhydrophobic property in high humidity environment,so that the surface does not have a discharge channel to produce condensation.

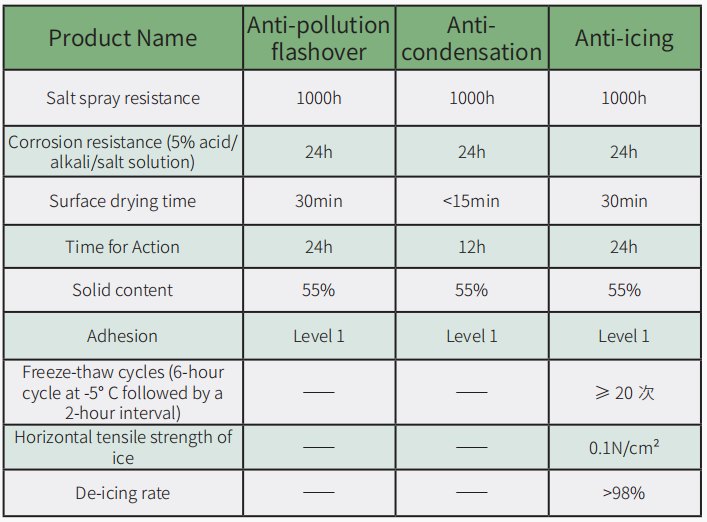

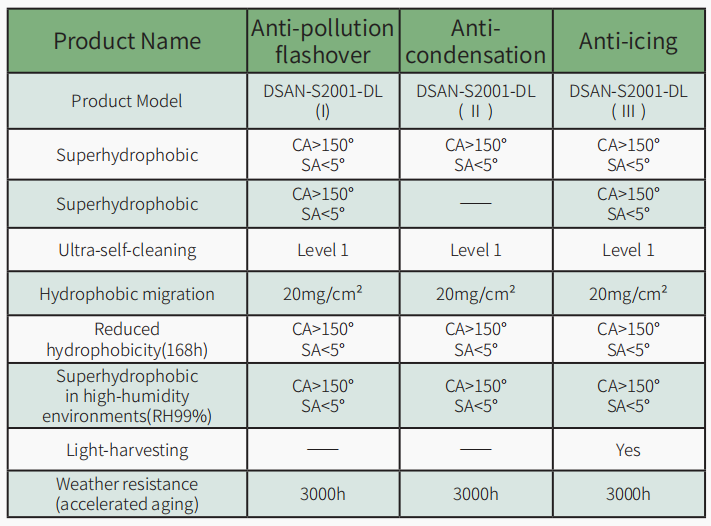

Second,lightning protection waterproof coating features

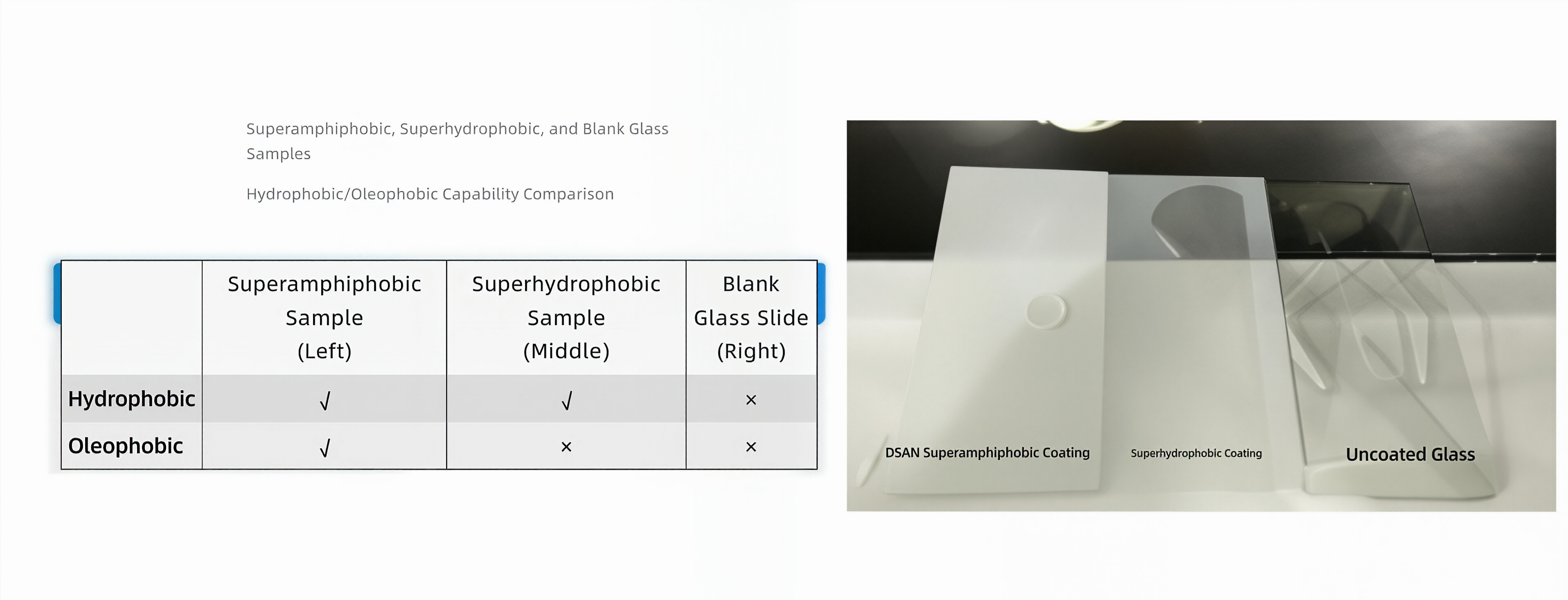

1,super-hydrophobic:contact angle≥160°,rolling angle<2°,water droplets easily rolled down from the surface,soaked in water for more than 60 days still maintains super-hydrophobic state;
2,Super oleophobic:Prevent the dirt flash and breakdown caused by bird droppings and other oil pollution;
3,super self-cleaning:not easy to get grey,self-cleaning level 1,heavy dirt environment,grey in contact with water,rapid contraction,can not form a dirty flash discharge dry area;

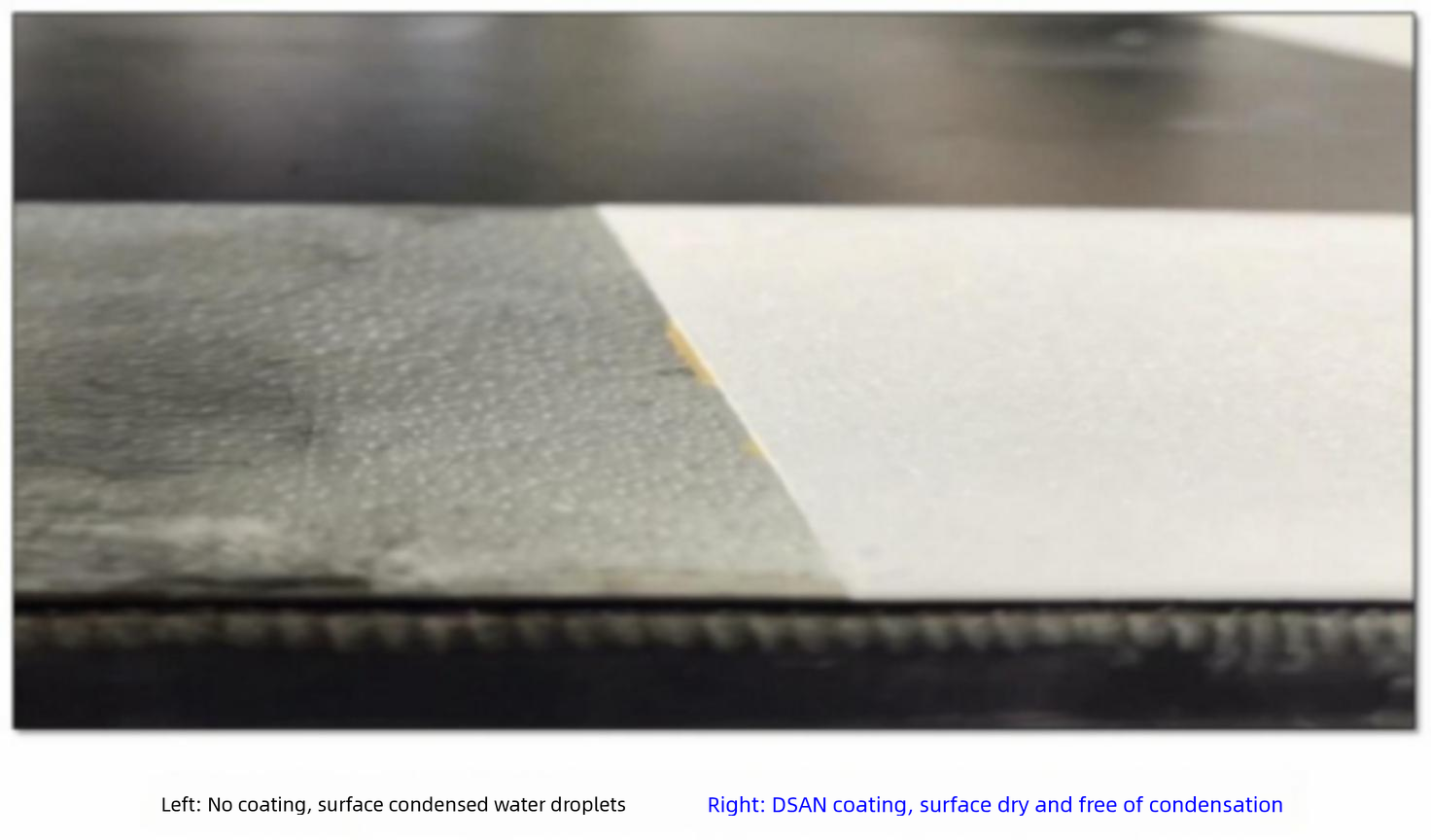

4,excellent high humidity environment superhydrophobic:99%relative humidity,contact angle≥150°,rolling angle<5°,droplets will not stick to the surface of the substrate.Effectively prevent the formation of water film on the surface,regardless of how the equipment environment changes,as long as there is no condensation discharge channel,you can greatly improve the operational reliability of the equipment;
5,excellent adhesion:in glass,ceramics,stone,aluminium and all kinds of conventional coatings on the adhesion can reach level 1;
6,excellent weather resistance:the introduction of fluorine-containing compounds,so that the coating in the natural environment to delay icing,reduce the amount of icing,easy to get rid of ice.UV aging resistance far exceeds the general material.
Third,lightning protection waterproof coating application range
Power grid:transmission lines,power towers,various types of insulators,insulated pillars/casing,etc.
Wind power new energy:fan blades
Fourth,lightning protection waterproof coating advantages
1,super-hydrophobic surface to solve the water bead distortion generated by the partial discharge and produce O3,NO,NO2 and other corrosive gases,reducing the corrosion of insulation materials and metals,thus greatly improving the grid outside the insulation anti-fouling flash capacity,effectively preventing the grid due to filth,condensation and dew,freezing rain,ice and snow disasters caused by the damage to the weather.

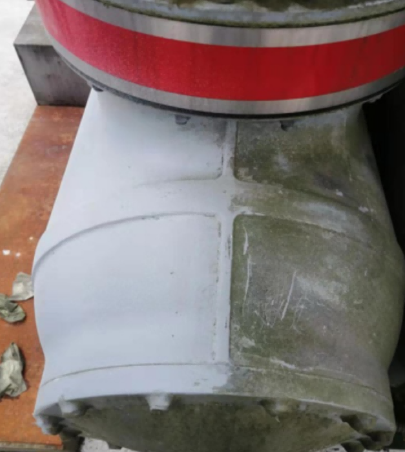

2,bionic simulation of the surface structure of the lotus leaf,the construction of air cushion,blocking water contact with the substrate,so the substrate is difficult to rust.
3,Dense bottom coating,blocking the contact between oxygen and metal.
4,Strong acid resistance,effectively resist acid rain erosion.
5,Excellent salt spray resistance,resisting coastal high salt climate environment.
6,Construction method friendly,can be used on old equipment.
7,can effectively prevent breakdown due to condensation,salt spray,bird droppings,ice,oil,etc.,to prevent metal corrosion,prevent insulators from"climbing".

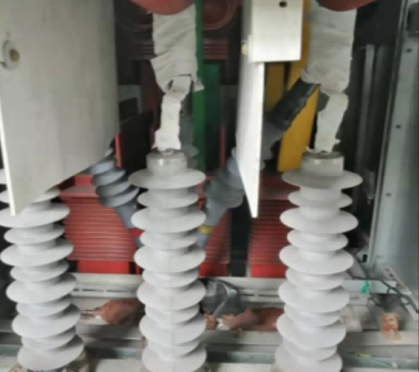

Fifth,Lightning waterproof coating application cases
1,State-Grid Xinjiang Jiangnan Power Supply Co.,Ltd.110KV substation(anti-fouling flash)
2,Hunan Electric Power Company Hengyang Power Supply Company Qingshui 110KV substation(anti-cement and other heavy filth)
3,Hubei Electric Power Company Jianli Power Supply Company(anti-bird droppings)
4,Guizhou Provincial Power Company Duyun Power Supply Bureau 220KV Shanping Substation(anti-moss)
5,Fujian a coastal 10KV distribution line
6,Suidong converter station 800KV knife gate insulator
(Want to know more about lightning protection and grounding products-DSAN double sparse bionic coating related content,welcome to call the hotline!)
